Table of Contents
Machines
| Machine | IP address | Lockable Resource | Function | Connected devices |
|---|---|---|---|---|
| asterix | 172.21.16.127 | CI-Asterix-Usage | gNB (n78) | 173.21.19.14 |
| obelix | 172.21.16.128 | CI-Obelix-Usage | eNB (n40, n78), nrUE | 172.21.19.13, X300 (192.168.60.2), B200mini (30C51EB) |
| porcepix | 172.21.16.136 | CI-NSA-MiniBench | Executor, EPC, 5GC | -- |
| nrmodule2 | 172.21.16.139 | CI-NSA-MiniBench | Quectel | Quectel module |
| nepes | 172.21.16.137 | CI-NSA-MiniBench | gNB (n78) | B200mini (30C51D4) |
| caracal | 172.21.16.132 | CI-Caracal | gNB/phytest | N300 (192.168.10.2) |
| idefix | 172.21.16.135 | CI-NSA-MiniBench | Quectel | Quectel module |
| amariue | 172.21.16.144 | CI-Amarisoft-UE-Usage | nrUE | Amarisoft UE simulator |
| bellatrix | 192.168.117.115 | CI-RAN-VM-Deployment | Executor | -- |
| nano | 192.168.12.62 | CI-Bench-1-Phones | EPC, adb | 2x COTS (adb) |
| hutch | 192.168.12.19 | CI-Bench-1-Phones | eNB (B7) | B200mini (30C5239) |
| starsky | 192.168.12.18 | CI-Bench-1-Phones | eNB (B40) | b200mini (30A3E3C) |
| carabe | 192.168.12.211 | CI-Bench-2-OAI-Phone | UE (B7UE) | B200mini (30AE8C9) |
Note: The available resources, and their current usage, is indicated here:
- Lockable resources of jenkins-oai: "New" Jenkins, i.e., with RAN-Container-Parent
- Lockable resources of open5glab jenkins: "Old" Jenkins, i.e., with RAN-CI-Develop
Networked devices
| Type | IP address (mgmt) |
|---|---|
| USRP N310 | 172.21.19.14 |
| USRP N310 | 172.21.19.13 |
Testbenches

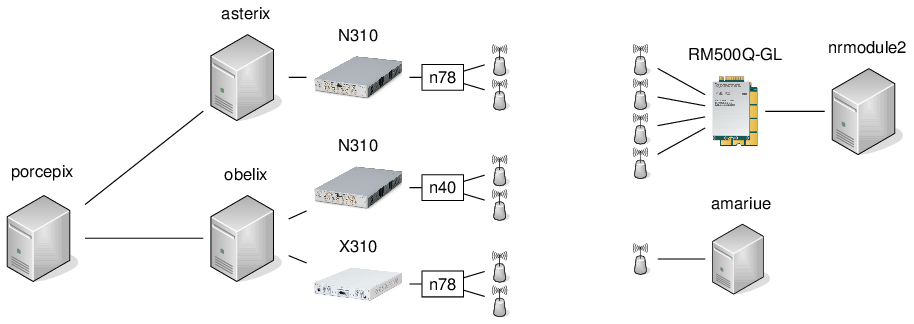

OTA Testbench
Purpose: Over-the-air 4G/5G (NSA/SA) tests
Note: obelix and porcepix are both used in the OTA testbench and the 5G NSA/Faraday Cage testbench!
PDF version | LaTeX/TikZ version if you want to modify to reflect your setup

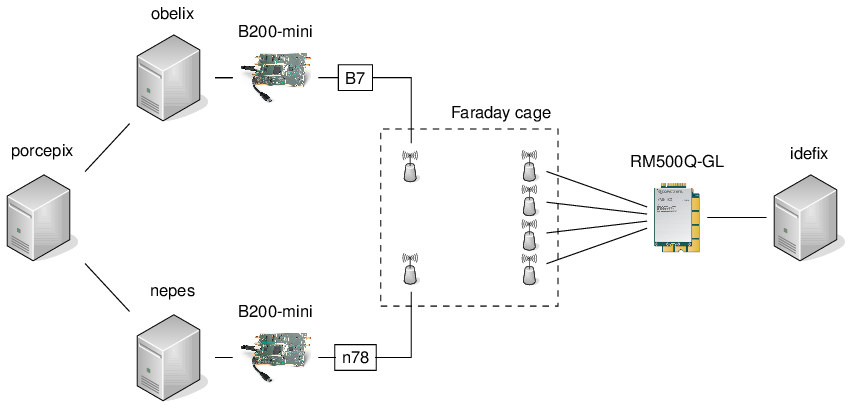

5G NSA/Faraday Cage Testbench
Purpose: Faraday cage 5G tests
Note: obelix and porcepix are both used in the OTA testbench and the 5G NSA/Faraday Cage testbench!
PDF version | LaTeX/TikZ version if you want to modify to reflect your setup

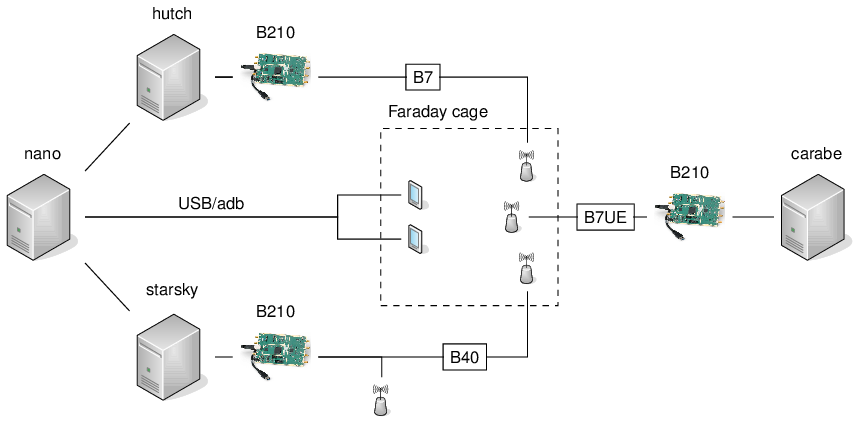

4G Testbench(es)
Purpose: 4G/LTE testbenches
PDF version | LaTeX/TikZ version if you want to modify to reflect your setup
Pipelines
RAN-Container-Parent
Purpose: automatically triggered tests on MR creation or push, from Gitlab Webhook
- RAN-cppcheck
- obelix
- performs static code analysis, currently not actively enforced
- RAN-gNB-nrUE-MONO-TDD-Band78-N300
- caracal + N310
- pure performance test through phy-test scheduler, see command line for more details
- RAN-L2-Sim-Test-5G
- obelix (eNB, 1x UE, OAI EPC)
- L2simulator: skips physical layer and uses proxy between eNB and UE
- RAN-L2-Sim-Test-5G
- obelix (gNB, 1x UE, OAI 5GC)
- L2simulator: skips physical layer and uses proxy between gNB and UE, currently only ping
- RAN-NSA-B200-Module-LTEBOX-Container
- obelix + B200, nepes + B200, idefix + Quectel, porcepix w/ ltebox
- basic NSA test
- RAN-SA-B200-Module-SABOX-Container
- obelix + B200, nepes + B200, idefix + Quectel, porcepix w/ sabox
- basic SA test (40 MHz TDD)
- RAN-PhySim-Cluster
- asterix (
Asterix-OC-oaicicd-sessionresource), tests in OpenShift Cluster - unitary simulators (
nr_dlsim, etc.)
- asterix (
- RAN-RF-Sim-Test-4G
- obelix (eNB, 1x UE, OAI EPC)
- uses RFsimulator, for FDD 5, 10, 20MHz with core, 5MHz noS1
- RAN-RF-Sim-Test-5G
- obelix (gNB, 2x UE, OAI 5GC)
- uses RFsimulator, TDD 40MHz, FDD 40MHz, F1 split
- RAN-RHEL8-Image-Builder
- asterix: RHEL 8 image build using podman
- RAN-Ubuntu18-Image-Builder
- obelix: Ubuntu 18 image build using docker
RAN-CI-NSA-Trigger
Purpose: longer-running over-the-air LTE, NSA, and SA tests, triggered through cron job at midnight
- RAN-LTE-2x2-Module-OAIEPC
- obelix + N310, nrmodule2 + Quectel, porcepix w/ Magma EPC
- LTE 2x2 test with TM1 and TM2
- RAN-NSA-B200-Module-LTEBOX
- obelix + B200 (eNB), nepes + B200 (gNB), idefix + Quectel, porcepix w/ ltebox
- Note: like RAN-NSA-B200-Module-LTEBOX-Container above, but compiled/run from source
- RAN-NSA-2x2-Module-OAIEPC
- obelix + N310 (eNB), asterix + N310 (gNB), nrmodule2 + Quectel, porcepix w/ Magma EPC
- LTE 2x2 and NR 2x2 (non-standalone)
- RAN-SA-Module-CN5G
- asterix + N310 (gNB), nrmodule2 + Quectel, porcepix w/ OAI 5GC
- NR 2x2 (standalone)
- RAN-SA-OAIUE-N310-X300-CN5G
- asterix + N310 (gNB), obelix + N310 or X300 (5G UE), porcepix w/ OAI 5GC
- OTA test with OAIUE using both N310 and X300
- RAN-SA-AmariS-CN5G
- asterix + N310, amariue (1x UE), porcepix w/ OAI 5GC
- Amarisoft UE simulator: expected to be increased to more UEs
RAN-CI-develop
Purpose: automatically triggered tests, mostly 4G, to be phased out and integrated into RAN-Container-Parent
runs tests:
- bellatrix: runs 4G/5G simulators directly (eNB + 1x UE + (opt.) OAI EPC, gNB + 1x UE in "noS1")
triggers pipelines:
- eNB-CI-F1-FDD-Band7-B210
- hutch + B210, nano w/ ltebox + 2x UE
- tests 4G FDD with F1 split, 5MHz, 10MHz, 20MHz. 5MHz stable, rest known to be unstable
- eNB-CI-FDD-Band7-B210
- hutch + B210, nano w/ ltebox + 2x UE
- tests T tracer, information through FlexRAN, RRC inactivity timers, inactivity timers + FlexRAN, different bandwidths
- eNB-CI-IF4p5-FDD-Band7-B210
- hutch + B210, nano w/ ltebox + 2x UE
- tests IF4.5 split over bandwidths 5, 10, 20 MHz in Band 7
- eNB-CI-IF4p5-TDD-Band40-B210
- starsky + B210, nano w/ ltebox + 2x UE
- tests IF4.5 split over bandwidths 5, 10, 20 MHz in Band 40
- eNB-CI-TDD-Band40-B210
- starsky + B210, nano w/ ltebox + 2x UE
- T tracer, TM1 over bandwidths 5, 10, 20 MHz in Band 40, default scheduler for 20 MHz
- eNB-UE-CI-MONO-FDD-Band7-B200
- hutch + B210 (eNB), carabe + B210 (4G UE), nano w/ ltebox
- tests OAI 4G for 5 MHz/TM1 with both CN and in noS1 model, MBMS; known to be unstable
- UE-CI-FDD-Band20-B200
- starsky + B210 (sniffer)
- Sniff MIB + SIB1 of Orange, SFR
